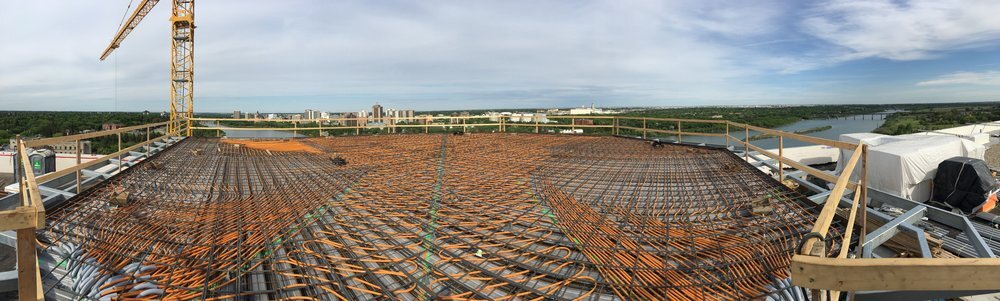

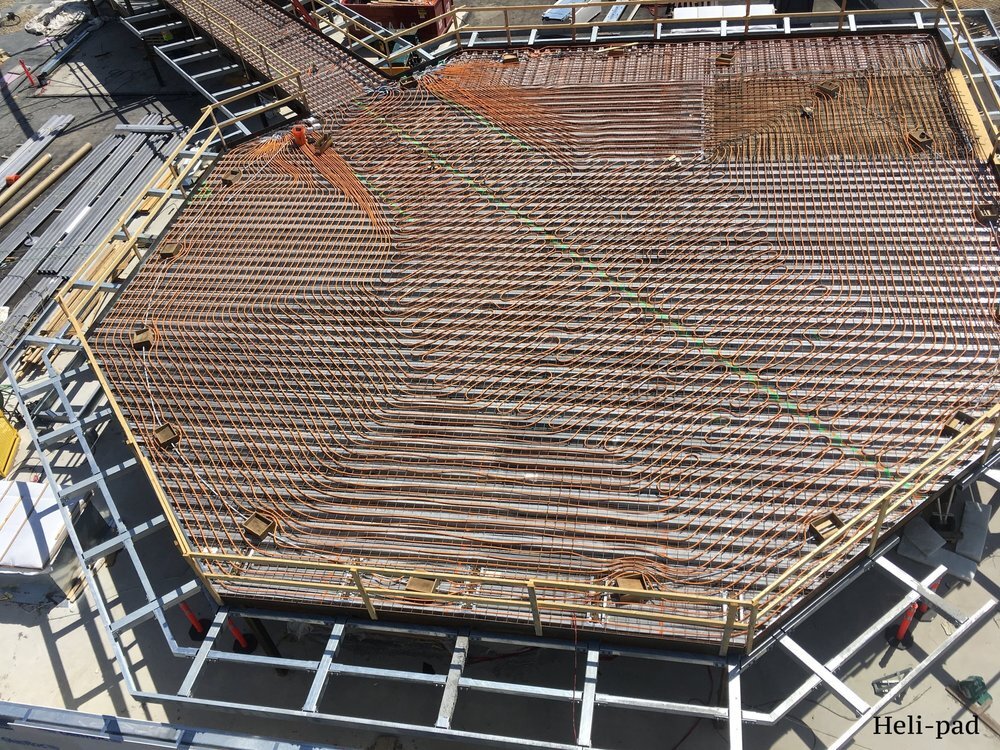

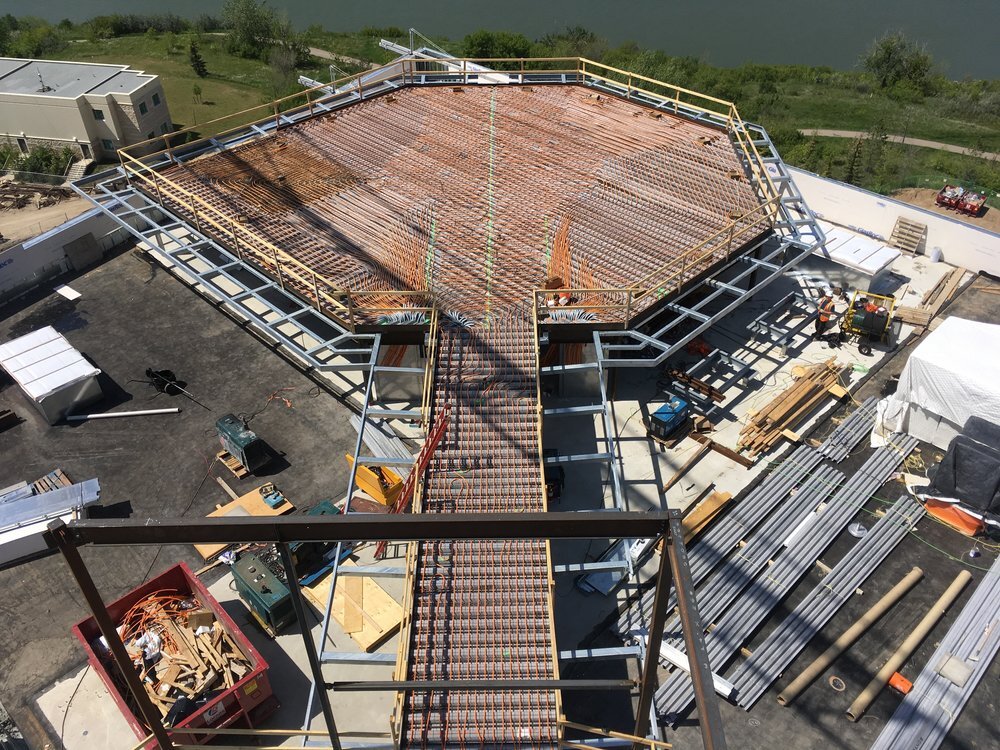

Regina Children’s Hospital Snowmelt Installation

• Total Ice/Snowmelt Area – 3651 Sq. Ft.
• Total Load – 1,176,768 Btu/hr., 322.3 Btu/hr./sq. ft.
• Total Flow – 83.1gpm
• Manifolds – 4
• Circuits – 39
• Tubing – 3/4″
• Spacing – 6”
• Tubing – 3/4″ PE-RT
